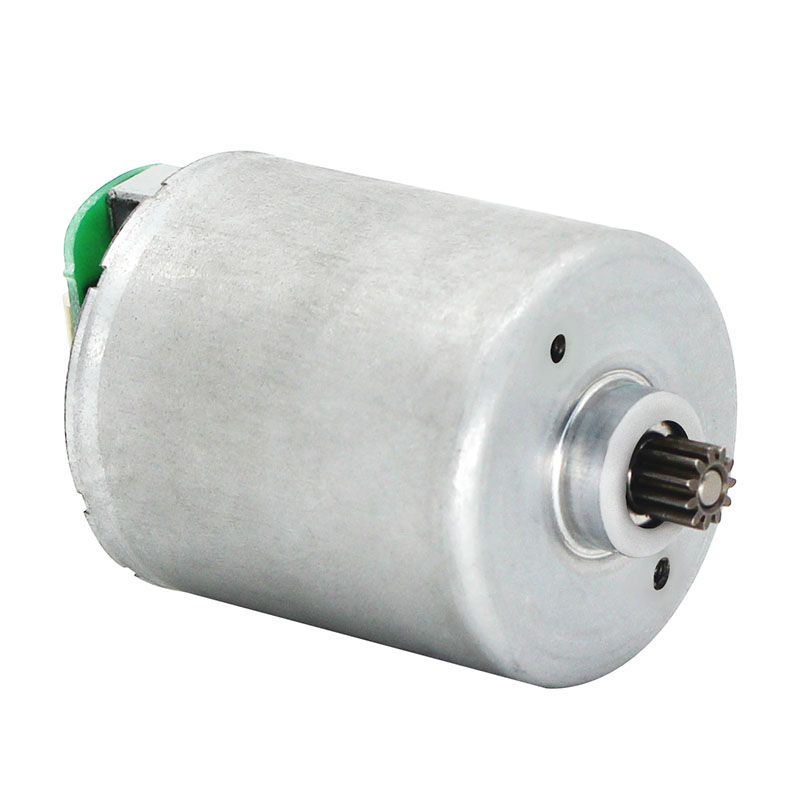

Hurtowy bezszczotkowy silnik 36 mm z różnymi opcjami sterownika produkowany w fabryce w Chinach - Chaoya, bezszczotkowy silnik 36 mm z różnymi opcjami sterownika oferuje użytkownikom elastyczność w wyborze najodpowiedniejszego sterownika do ich zastosowania, z szeroką gamą opcji dostępnych dla różnych wymagań wydajnościowych. Dostępne sterowniki obejmują opcje fal Sane, fali prostokątnej i bezczujnikowe, każdy o innej charakterystyce i zaletach.
with years of experience in Brushless motor , China Chaoya motor factory directly supply high quality of 36mm Brushless Motor With Different Driver Options, By having different driver options, users can choose the optimal driver for their specific needs, whether it be for speed control, position sensing, or other functions.The sine-wave driver provides a smooth and quiet operation, delivering superior efficiency and low noise for use in applications where precision and quietness are critical. On the other hand, the square-wave driver offers higher torque output, making it ideal for use in applications that require higher power output. The sensorless driver eliminates the need for sensors, reducing costs and complexity, and making it easier to design and integrate into a range of applications.Overall, the 36mm Brushless Motor with Different Driver Options provides users with the flexibility to select the driver that best suits their needs and requirements.
Model | Napięcie robocze (V) | Bez obciążenia | Maksymalna wydajność | Maksymalna moc | Stoisko | Kierunek obrotu | |||||||||
Prąd (A) | Prędkość obrotowa (RPM) | Moment obrotowy (mN.M) | prąd (A) | Prędkość obrotowa (RPM) | Moc (W) | Efektywność | Moment obrotowy (mN.M) | prąd (A) | Prędkość obrotowa (RPM) | Moc (W) | Moment obrotowy (mN.M) | prąd (A) | |||
BL3640DI02 | 12 | 0.16 | 5500 | 17.68 | 0.885 | 4701 | 8.71 | 82% | 63.62 | 2.813 | 2730 | 18.19 | 127.24 | 5.483 | CW/CCW |
BL3640DI11 | 12 | 0.1 | 3500 | 16.13 | 0.539 | 2952 | 4.95 | 77% | 51.5 | 1.5 | 1750 | 9.44 | 103 | 2.9 | CW/CCW |
BL3640HI | 24 | 0.03 | 2160 | 13.38 | 0.148 | 1796 | 2.51 | 71% | 39.73 | 0.381 | 1080 | 4.49 | 79.46 | 0.732 | CW/CCW |
BL3640SI | 12 | 0.18 | 6238 | 17.62 | 0.943 | 5238 | 9.67 | 85% | 54.98 | 2.562 | 3119 | 17.96 | 109.96 | 4.944 | CW/CCW |
